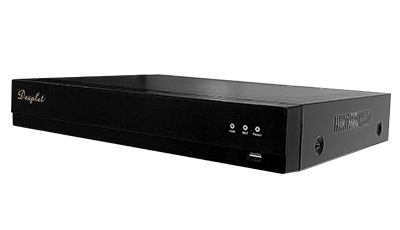

DK-1228 4-in-1 HDVR

8-CH IP-CAM or Analog-8MP Hybrid DVR

Hybrid analog+IP Analog IP-Cam 1080p IPC DIDO ONVIF Profile ST NDAA App P2P QR code Push Alarm RTSP 2 way audio Coaxial audio UTC Control over Coaxial eSATA Smart Search Alarm I/O HDMI 4K 3840 x 2160 VGA 2560 x 1600 RS-485 RS-232 sdk Taiwan SoC 100Taiwan
DK-1228 H.265 HDVR

 Datasheet Download

  Local
  • Video compression/decompression with configurable quality
  • Smart search / Key word POS search & playback
  • HDMI up to 4K * 1, VGA * 1, CVBS * 1
  • Up to 1 internal SATA HDD
  • Alarm in *8 / Alarm out * 1
  • Support Coaxial Audio
  • New Taiwan SoC solution, NDAA compliant
  • Support Multiple POS
  • Support Audio and DI/DO of IP-CAM
  • Support emergency enforce manual record video
  • eFence for Electronic Fence support
  • Support NAS, eSATA Raid
  • Taiwan R&D and Manufacturing
  • OEM version can be customized
Remote
  • DVR browser utility
  • Push alarm notification for portable device
  • Two-way audio capabilities
  • Audio broadcasting
  • Can be used as NTP server
  • Dynamic electronics maps for CMS
  • Remote setup, monitoring, backup, alarm notification, & remote software upgrade
  • Remote access through mobile phone/PDA/Mac/Tablet PC with free iPhone/iPad/Android software app
  • I.E./Firefox/Chrome/App for DVR
  • Configurable HTTP/SMTP/FTP/Control/Data port
  • Support UPnP, P2P and QR code
  • Support video server to integrated recording via RTSP
  • MS-Windows/iOS/Android SDK for the integration with different applications
