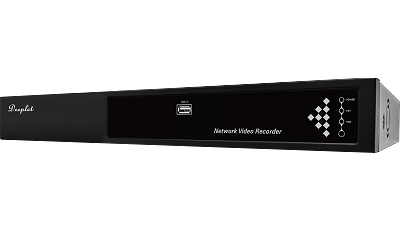

DN-32316

16-CH Rack-mountable embedded NVR

(New Taiwan SoC solution)

8MP 16-CH Input ONVIF Profile ST App P2P QR code Push Alarm UPnP RTSP 2 way audio P&P DHCP Server Built-in eSATA Alarm I/O USB 3.0 PoE HDMI 4K 3840 x 2160 RS-232 RS-485 watermark DIDO NDAA SDK
DN-5032AR6

 Datasheet Download

Features:
  • New Taiwan SoC solution, TAA and NDAA compliant
  • Rack-mountable 16-CH embedded NVR (Network Video Recorder)
  • Connect up to 16-CH IP-CAM, 8MP/CH with sixfold operation - simultaneous record, live, playback, backup, control, & remote access
  • Plug & play for both IP-CAM and NVR
  • Support multi-brand IP-CAM with ONVIF Profile S/T support or RTSP
  • Video compression/decompression with configurable quality
  • Decoding Capability: 12x1080p@30 fps
  • Max. 320Mbps incoming bandwidth
  • Realtime live display, up to 30/25fps for each channel
  • Up to 2 internal HDDs (Up to 12TB capacity for each HDD)
  • Optional, 1 eSATA connectors
  • HDMI x 1 (3840*2160), VGA x 1 (1920*1080), CVBS x 1
  • Digital watermark
  • Two-way audio capabilities
  • Support DI/DO of IP-Cam
  • Event recording, time-lapse recording or both
  • Playback search by time or event (alarm, motion & video loss)
  • Optional PoE * 16/8
  • Digital zoom X2 & X4
  • Audio in * 1 / audio out * 1
  • Up to 2 RJ45 1Gbps Ethernet connectors, support for remote access, with dual streaming support
  • DVR browser utility
  • Built-in DHCP Server support
  • Push alarm notification for portable device
  • iPhone/iPad/Mac/Android/MS-Windows remote software
  • 1 I.E./Firefox/Chrome/App for multiple DVRs
  • Support UPnP, P2P, RTSP and QR code
  • MS-Windows/iOS/Android SDK for the integration with different applications
